Description
| Item No.:400005 | Technical data | ||
| Rated line pull | 1500lb(680kg) | ||
| Rated double-line pulls | 3000lbs(1361kgs) | ||
| Motor | 0.52KW/0.69HP 12V, Permanent magnet | ||
| Rated double-line pulls | 3000lbs(1360KG) | ||
| Gear reduction ratio | 153:1 | ||
| Drum dimensions | Φ1.2″x2.8″(Φ30.5mm*71.5mm) | ||
| Cable | Φ5/32″x49′(4mm*15m) | ||
| Motor cable | 1.36m | ||
| Battery cable | 1.83m | ||

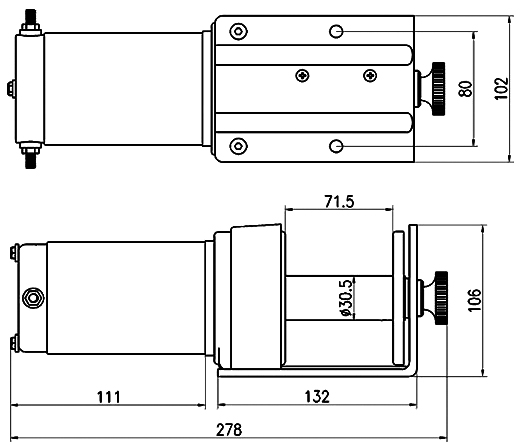

| Overall dimensions | 10.9″x4.1″x4.1″(278mm*103.5mm*106mm) | ||
| Mounting bolt pattern | Φ3/10″x3″(Φ8.5mm*80mm) | ||
| Packing size | 33.5x16x37cm 2PCS/CTN | ||
| Weight | N.W/G.W: 11kg/12kg |
| LINE SPEED and AMP DRAW (First Layer) 12V | ||||||
| Line Pull | lb | 0 | 1000 | 2000 | 3000 | |
| kg | 0 | 453 | 907 | 1361 | ||
| Line Speed | ft/min | 5.28 | 4.6 | 3.8 | 2.97 | |
| m/min | 1.6 | 1.4 | 1.15 | 0.9 | ||
| Motor | Amps | 12 | 25 | 40 | 68 | |
| Line Pull and Cable Capacity | ||||||
| Layers of cable | 1 | 2 | 3 | 4 | 5 | |
| Rated line pull per layer | Lb | 3000 | 2422 | 2090 | 1805 | 1444 |
| Kg | 1360 | 1098 | 948 | 818 | 655 | |
| Cumulative | ft | 7.26 | 15.8 | 26 | 37 | 50 |
| Cable capacity | m | 2.2 | 4.8 | 7.9 | 11.4 | 15 |
