Description
3000lbs(1361kg) Electric Winch

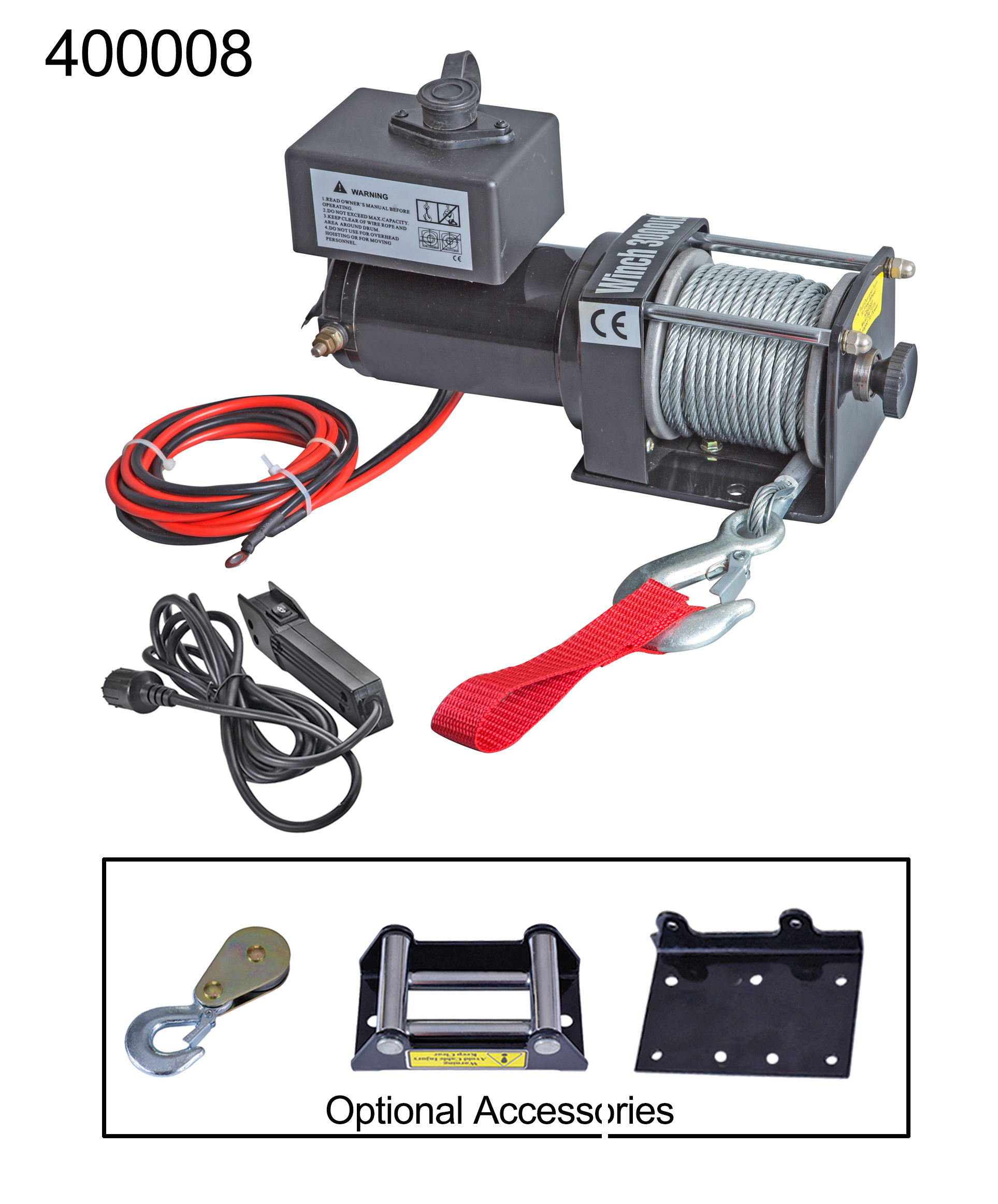

| Item No.:400008 | Wire control | ||

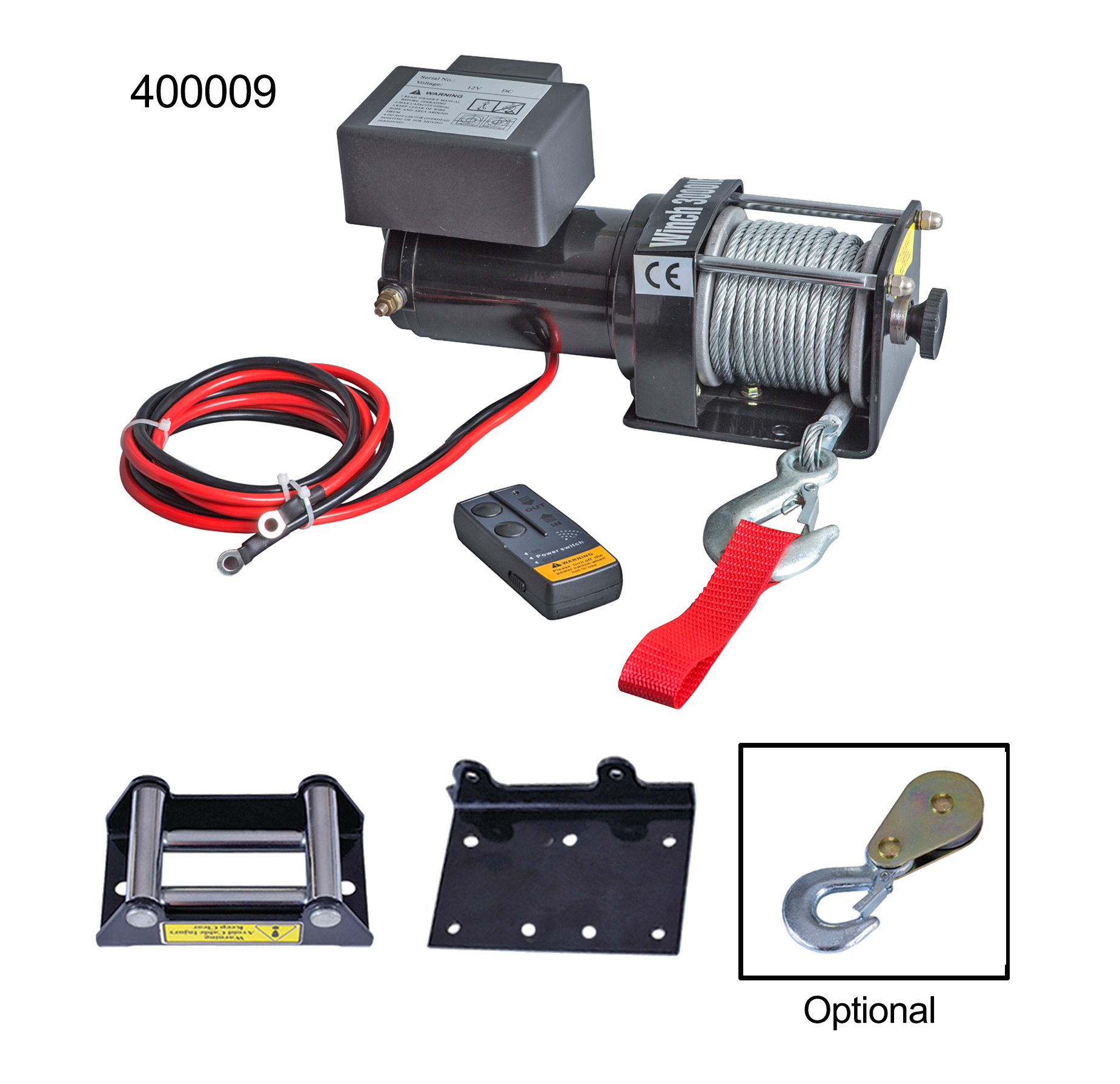

| Item No.:400009 | Wireless remote control | ||
| Rated line pull | 3000lb(1361kg) Single Line | ||
| Motor | 1.0KW/1.34HP 12V,Permanent magnet | ||
| Gear reduction ratio | 153:1 | ||
| Cable (Dia x L) | Ф3/16”x43”(Ф4.8mmx13.5m) | ||
| Drum size (Dia x L) | Ф1.2”x2.8”(Ф30.5×71.5mm) | ||
| Switch control lead | 3m | ||
| Battery cable | 1.83m | ||

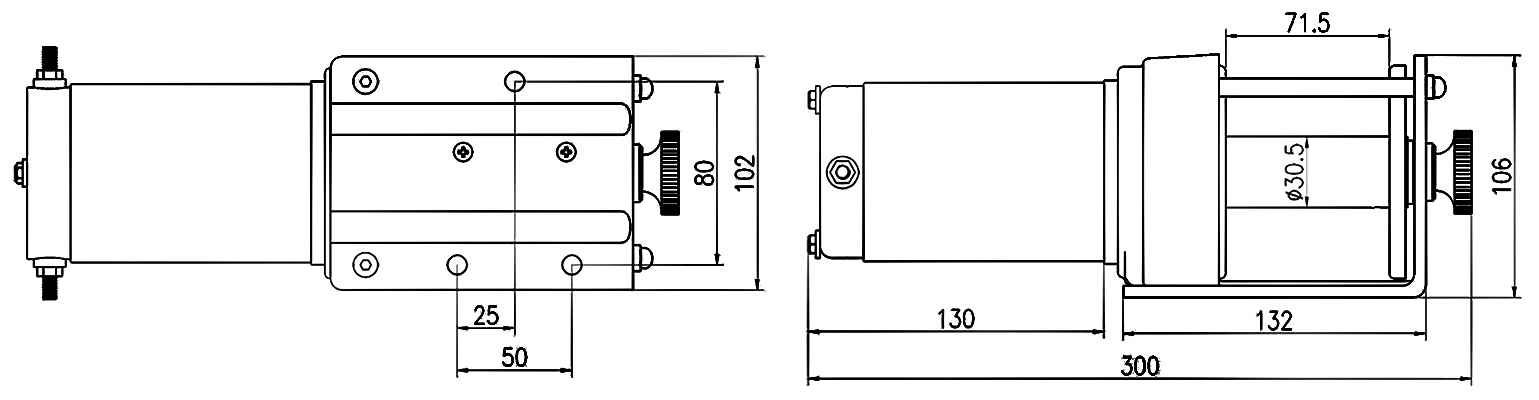

| Overall dimensions | 11.8”x4.1”x4.1”(300×103.5x106mm) | ||
| Mounting bolt pattern | Ф3/10”x3”(Ф8.5x80mm) | ||
| Packing size | 34*24*34cm 2PCS/CTN | ||
| Weight | N.W/G.W: 16kg/17kg |
| Line Speed and Amp Draw (First Layer)12V | |||||||
| Line pull | Lb | 0 | 1000 | 2000 | 3000 | ||
| Kg | 0 | 454 | 907 | 1361 | |||
| Line Speed | ft/min | 9.5 | 6.6 | 4.3 | 2.3 | ||
| m/min | 2.9 | 2 | 1.3 | 0.7 | |||
| Motor | Amps | 10 | 25 | 60 | 150 | ||
| Line Pull and Cable Capacity | |||||||
| Layers of cable | 1 | 2 | 3 | 4 | 5 | 6 | |
| Rated Line Pull per layer | lb(kg) | 3000(1361) | 2370(1075) | 1960(889) | 1670(756) | 1460(662) | 1290(585) |
| Cumulavtive | ft(m) | 4.6(1.4) | 10.8(3.3) | 18(5.5) | 22(6.7) | 27.9(8.5) | 33.4(13.5) |
