Description

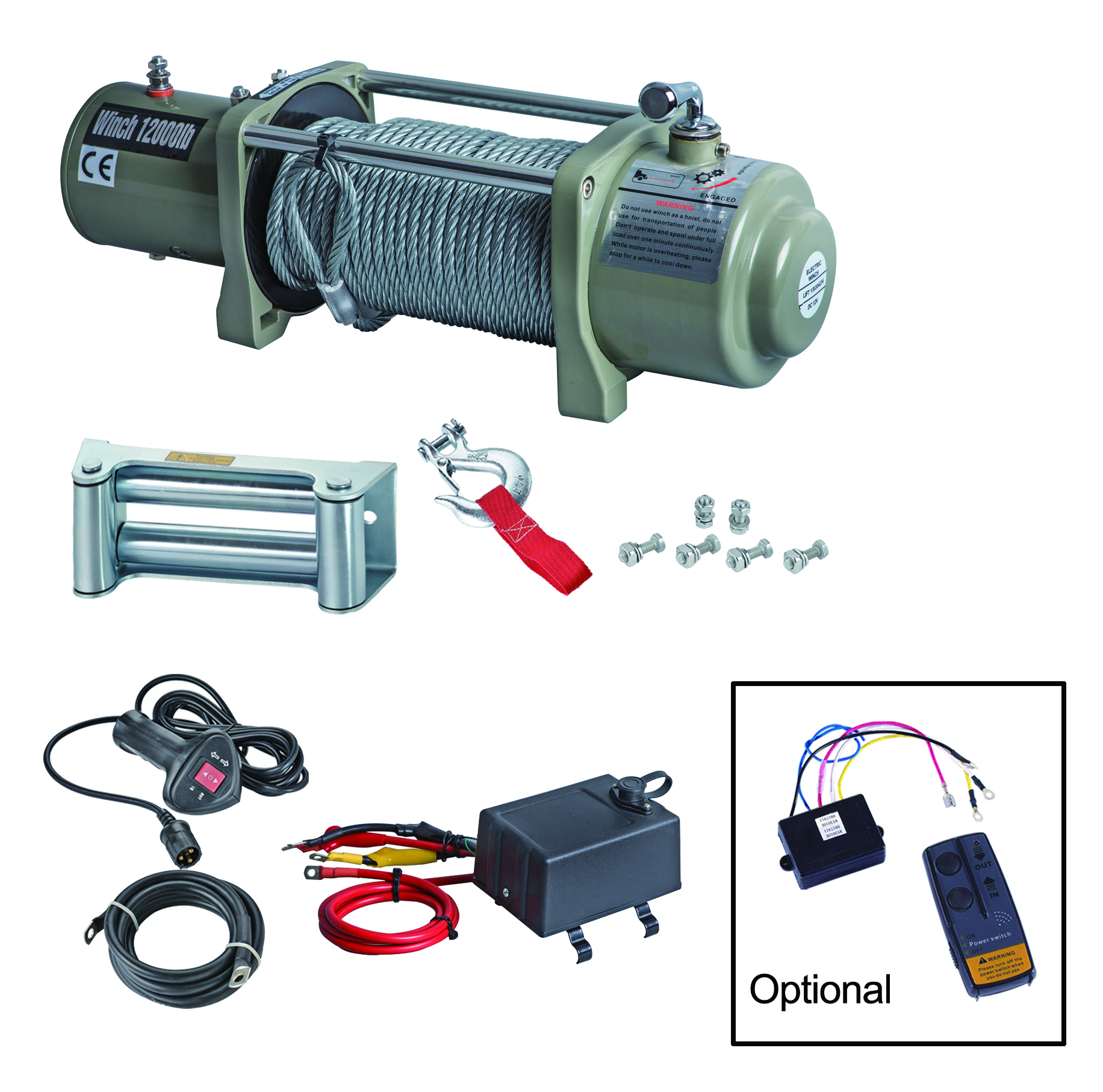

12000lbs(5443kg) Heavy duty Electric Winch
| Item No.:4000016 | Technical data | |
| Rated Line Pull | 12000lb(5443kg) Single Line | |
| Motor | 4.8KW/6.6HP 12V,5.0KW/6.65HP 24V,Series Wound | |
| Gear train | 3 Stage Planetary | |
| Gear reduction ratio | 187.2:1 | |
| Clutch | Sliding Ring Gear | |
| Braking Action | Two-Way,Automatic In-The-Drum | |
| Drum Dimensions | Ф2.5”x8.8”(Ф63.5mmx224mm) | |
| Cable(Dia X L) | Ф23/64”x90”(Ф9.1mmx27.5m) | |
| Fairlead | 4-Way roller fairlead | |
| Wireless Remote control | Optional | |
| Battery | Recommended 650CCA minimum for winching | |
| Battery leads | 2 gauge,72”(1.83m) | |
| Finish | Dark gray power coat | |

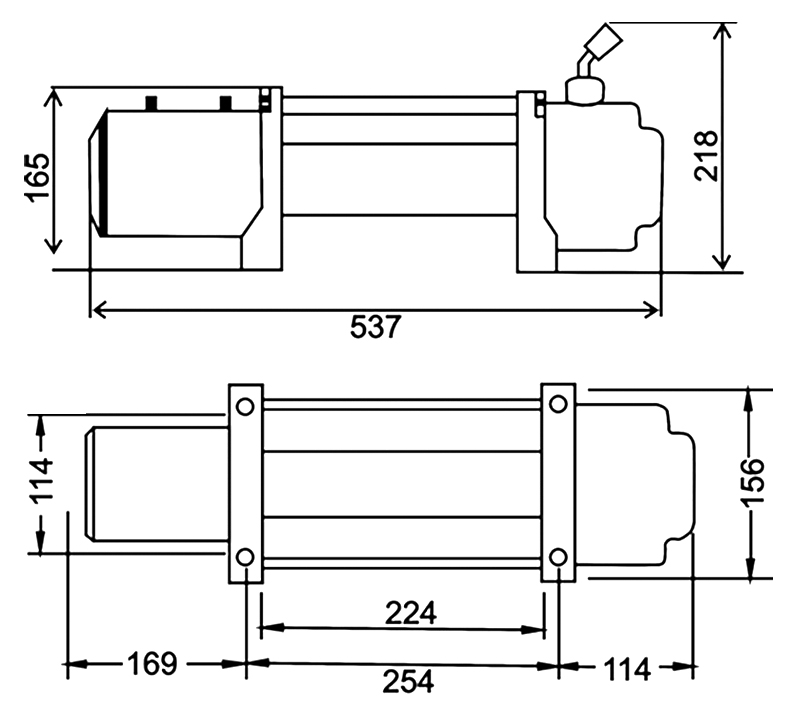

| Overall dimensions | 21.1”x6.3”x8.6”(537x160x218mm) | |
| Mounting Bolt Pattern | 254mmx114.3mm | |
| Packing size | 57x19x34.5cm 1PCS/CTN | |
| Weight(cable winch) | N.W/G.W: 37kg/39kg | |
| 12000LB Line Pull and Cable Capacity | ||||||
| Layers of cable | 1 | 2 | 3 | 4 | ||
| Rated line pull per layer | 12000 | 9210 | 8030 | 6894 | ||
| 5443 | 4170 | 3640 | 3125 | |||
| Cumulative cable capacity | 17 | 41 | 71 | 91.8 | ||
| 4.8 | 12 | 21 | 27.5 | |||
| 12000LB Line Speed and Amp Draw (First Layer)12V | ||||||
| Line Pull | 0 | 4000 | 6000 | 8000 | 10000 | 12000 |
| 0 | 1810 | 2720 | 3628 | 4540 | 5440 | |
| Line Speed | 33.3 | 16.8 | 12.8 | 10.1 | 8.8 | 7.6 |
| 10.3 | 5.1 | 3.9 | 3.1 | 2.7 | 2.3 | |
| Motor | 85 | 158 | 231 | 302 | 371 | 420 |
| 12000LBLine Speed and Amp Draw (First Layer)24V | ||||||
| Line Pull | 0 | 4000 | 6000 | 8000 | 10000 | 12000 |
| 0 | 1810 | 2720 | 3628 | 4540 | 5440 | |
| Line Speed | 35 | 18.5 | 14.4 | 11.5 | 10 | 8.9 |
| 10.8 | 5.6 | 4.4 | 3.5 | 3.1 | 2.7 | |
| Motor | 50 | 136 | 170 | 210 | 240 | 280 |
